ISAR: Isoform Structure Alignment Representation

The structures of eukaryotic genes are complex and complicated. Many coding sequences have been observed and are being observed through various experimental techniques. A convenient and comprehensive cross-species representation of isoforms can help to comparatively analyze the expression, function and evolution of (alternative) transcripts. We address this issue by introducing the Isoform Structure Alignment Representation (ISAR). ISAR is a data structure (iDAG) and algorithm for a gene, transcript, and exon-intron structure aware and consistent Multiple Sequence Alignment (MSA) of isoforms from sets of orthologous and paralogous genes. An efficient algorithm constructs ISAR(iDAG)s from large sets of gene and isoform sequences by successively integrating highly confident candidate alignments. The approach is based on partially ordered sets and novel operations allowing the representation of maximal consistent alignments in a sparse graph data structure. Candidate alignments are obtained from diverse sources enabling the integration and conversion of any set of given alignments into an ISAR. The ISARs allow for the systematic classification and detailed exploration of the exon-intron structure across large sets of phylogenetic taxa and the efficient prediction of new isoforms across phylogenetically distant species.
rab_fasta_jalviewrab
Quick Start
Start ISAR from the command line:
java -jar ISAR-1.0.jar -in < input files > -out < output file >

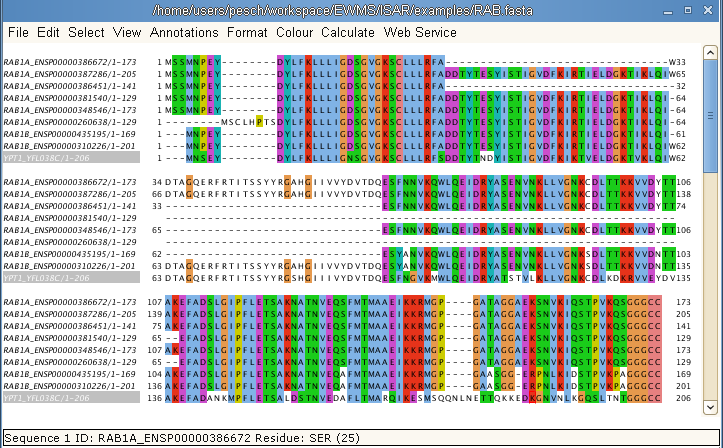

Compute an ISAR and produce a FASTA multiple alignment output and a graphical representation of the alignment for the sequences provided in the ISAR example directory:
java -jar ISAR-1.0.jar -in examples/RAB1A.fasta,examples/RAB1B.fasta,examples/YPT1.fasta \
     -out RAB -fasta -exon_view
Generate inputs and compute ISAR for human and mouse PAX6 isoforms.
perl scripts/seq_ensembl_dl.pl -s homo_sapiens -g ENSG00000007372 > PAX6_human.fasta
perl scripts/seq_ensembl_dl.pl -s mus_musculus -g ENSMUSG00000027168 > PAX6_mouse.fasta
java -jar ISAR-1.0.jar -in PAX6_mouse.fasta,PAX6_human.fasta -out PAX6 -fasta -exon_view
See the README in the ISAR distribution for further details.
Download
Contact

In case of problems/questions concerning ISAR, please do not hesitate to contact Gergely Csaba
